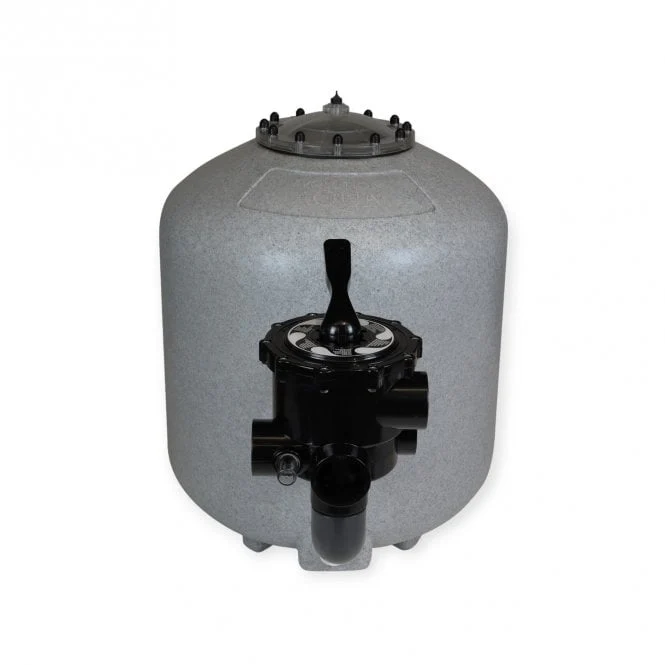

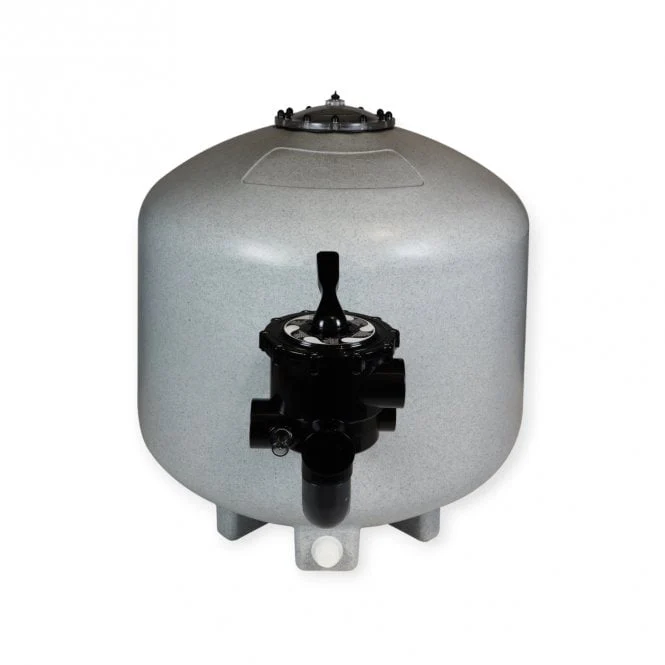

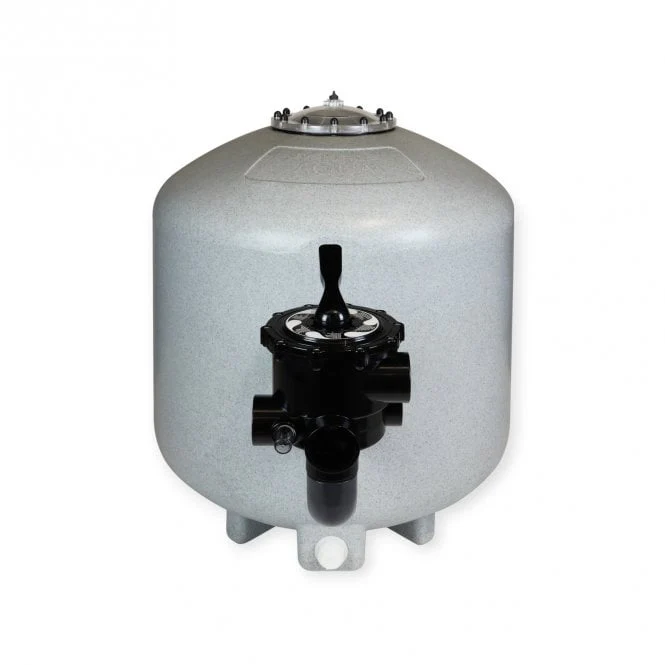

K+Advanced Filter

Introducing Evolution Aqua's latest innovation in pond filtration technology, the K+Advanced Filters. Manufactured by Evolution Aqua in the UK, this new range of pressure filters have been specifically designed to use Evolution Aqua’s own filtration media, to deliver exceptional water clarity and to be economical to run.

Manufactured to last using latest rotational moulding process for peace of mind
• Supplied with advanced  K+Media, delivering enhanced mechanical and biological filtration

• Economical to run. The filter has been engineered to maximise pump efficiency
• The colour matches existing Evolution Aqua filters
• Easy to operate and clean, with pipework, blower and multiport valve supplied.



Model	Diameter	Maximum Pond Size	Optimum Flow Rate	Volume Of K+Advanced Media	Multiport Valve Size	Max. Working Pressure
K+AdvancedFilter20	20" (500mm)	18,000 Litres 4,000 UK Gallons 4,800 US Gallons	6,000 LPH 1,320 GPH 1,585 US GPH	50 Litres 11 UK Gallons 13.2 US Gallons	1½"	1.5 Bar
K+AdvancedFilter24	24" (620mm)	36,000 Litres 8,000 UK Gallons 9,600 US Gallons	12,000 LPH 2,640 GPH 3,170 US GPH	100 Litres 22 UK Gallons 26.4 US Gallons	2"	1.5 Bar
K+AdvancedFilter30	30" (750mm)	54,500 Litres 12,000 UK Gallons 14,500 US Gallons	18,000 LPH 3,960 GPH 4,755 US GPH	150 Litres 33 Gallons 39.6 US Gallons	2"	1.5 Bar
K+AdvancedFilter36	36" (900mm)	91,000 Litres 20,000 UK Gallons 24,000 US Gallons	30,000 LPH 6,600 GPH 7,925 US GPH	250 Litres 55 Gallons 66 US Gallons	2"	1.5 Bar

How the K+Advanced Filter works

Water is pumped into the filter from the pond, through the multi-port valve where the internal pipework directs the water to the bottom laterals.

As the water flows upwards inside the K+Advanced Filter, dirt, debris and waste are trapped within the mass of K+Media that floats at the top of the filter. The vast protected surface area provided by K+Media also provides a home for beneficial bacteria, delivering mechanical and biological filtration.

The filtered water flows back through the laterals and pipework at the top of the filter, through the multi-port valve and back down the return line into the pond.

The K+Advanced Filter, is incredibly easy to clean by simply moving the handle on the multi-port valve into the corresponding positions to perform a backwash and rinse which flushes out the waste trapped inside.

Installation



The K+Advanced Filter can be installed as shown if you are planning to use a pre-filter such as the Evolution Aqua Cetus Sieve. If you are not planning to use a pre-filter we highly recommend that you fit a strainer basket to the pump.This will prevent leaves, string algae etc. from entering the filter and pump.



*It is recommended that all pipework on the pump side (from the pump to the filter and back to the pond) is installed on 2” pipe. Please note on the K+Advanced Filter 20 you will have to reduce your pipe down to 1½” to connect to the multiport valve. This will ensure that your pump is working at its maximum flow.



Do not operate the multiport valve with the circulating pump switched on. The air blower ball valve must be closed when the circulating pump is running.





The K+Advanced Filter can be installed as shown on a skimmer line.
